Abstract
Vertical level gauges with metal casing
Material: transparent polyamide based (PA-T) technopolymer.
Dimensions: center-to-center distance 76 mm (3”) o 127 mm (5”).

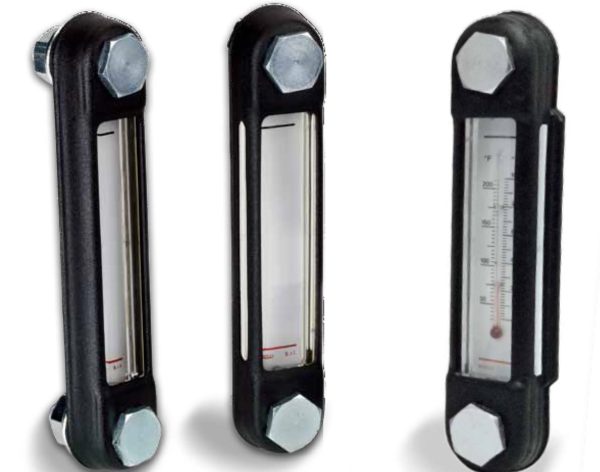

Standard executions: XL without thermometer o XLT with thermometer.
External guard: External casing made from steel or from polyamide 66 30% fiberglass.
Max working temperature: 90°C / 194 F (test made up to 1 Bar / 14,5 PSI).
Assembly: providing 2 threaded holes M10 or M12 (± 0,2 mm). Alternatively they can be secured internally through 2 plain holes 10,2 mm or 12,2 mm using the flanged nuts provided. Maximum tightening torque suggested 5 Nm.

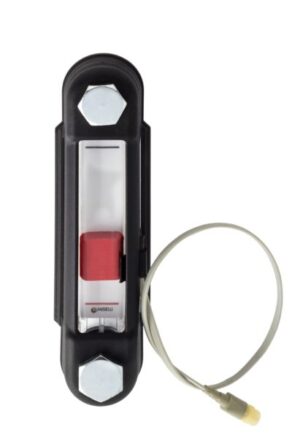

Optionals: version with special resin resitant to fluid containing alcohol and anti-freeze liquid /CX; version with floating red ball to improve visibility/RB; version /OR back seal provided through O-Ring in NBR rubber; version /V with O-Ring seal made from FKM Viton.
Avoid contact with alcohol based solutions and antifreeze fluids at high temperature.
